LEVER HANDLES

Our Lever Handles are available on Long Plates and Roses. Levers on Long Plates are available as passage sets or can be machined for Euros, Oval, Turn and Emergency functions. Unless otherwise specified our Lever Handles come with 8mm spindles. Roses have horizontal fixings at 40.5mm. Minimum backset for Roses is 57mm. Minimum backset for Long Plates is 30mm. Long Plates can also be ordered with a 4 point action. Lever Handles come as a back to back pair unless otherwise specified.


 bronze hardware made in new zealand

STRAIGHT ENTRANCE LEVER

A minimum back set of 57mm is required. Suitable for 72mm and 85 mm euro locks. Vertical fixings are at 318mm, 8mm spindle. An integrated turn is also available. Suitable for steel, aluminium and timber joinery.

 Dimensional Drawing Straight Entrance Lever

Dimensional Drawing Straight Entrance Lever

 bronze lever handle made in new zealand

FLAX LEVER

Spindle size 8 mm. Roses have horizontal fixings at 40.5 mm. Vertical fixings can be supplied on request. Minimum back set for roses is 57mm. Minimum back set for long plates is 30 mm. Long Plates can be ordered with the 4 Action Lock Mechanism.

 Dimensional Drawing Flax Lever
 bronze door handle made in new zealand

STRAIGHT LEVER

Spindle size 8mm. Roses have horizontal fixings at 40.5 mm. Vertical fixings can be supplied on request. Minimum back set for roses is 57mm. Minimum back set for long plates is 30 mm. Long plates can also be ordered with the 4 Action Lock Mechanism.

 Dimensional Drawing Straight Lever
 bronze door handle made in new zealand

WAVE LEVER HANDLE

Spindle size 8mm. Roses have horizontal fixings at 40.5mm. Vertical fixings can be supplied on request. Minimum back set for roses 57mm. Minimum back set for long plates 30 mm. Long plates can be ordered with the 4 Action Lock Mechanism. Fixings on longs plates are 12mm thick.

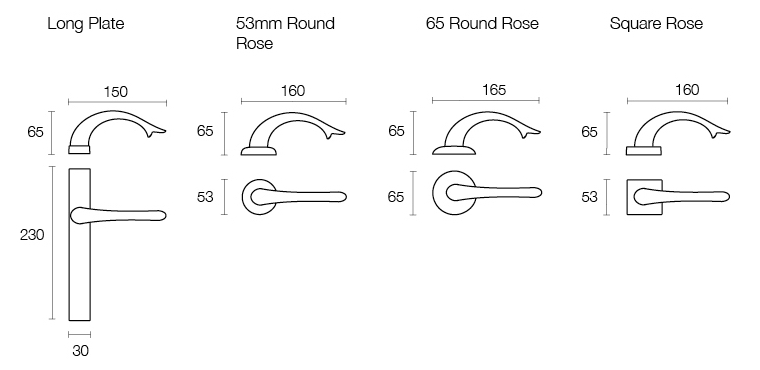

 Dimensional Drawing Wave Lever

Dimensional Drawing Wave Lever

ITS HERE and its BEAUTIFUL!!! I am so thrilled, thankyou.
— Vicki Biddle - Whangarei

 bronze door handle made in new zealand

DRIFT LEVER HANDLE

Spindle size 8mm. Roses have horizontal fixings at 40.5mm. Vertical fixings can be supplied on request. Minimum back set for roses 57mm. Minimum back set for long plates 30 mm. Long plates can be ordered with the 4 Action Lock Mechanism. Fixings on longs plates are 214mm.

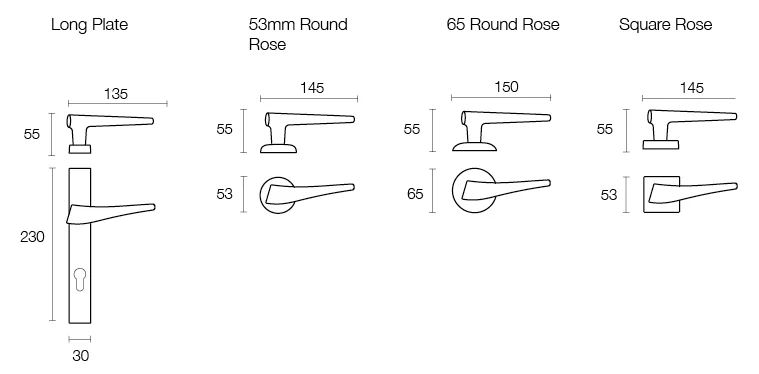

 Dimensional Drawing Drift Lever
 bronze hardware made in new zealand

SPRAT LEVER HANDLE

Spindle size 8mm. Roses have horizontal fixings at 40.5mm. Vertical fixings can be supplied on request. Minimum back set for roses 57mm. Minimum back set for long plates 30 mm. Long plates can be ordered with the 4 Action Lock Mechanism. Fixings on longs plates are 214 mm.

 Dimensional Drawing Sprat Lever Handle
