BOLTS

Our Bolts are suitable for both sliding and hinged doors. Solid Bronze - as always. Weather Proof Strikes are available for both.


 bronze bolts made in new zealand

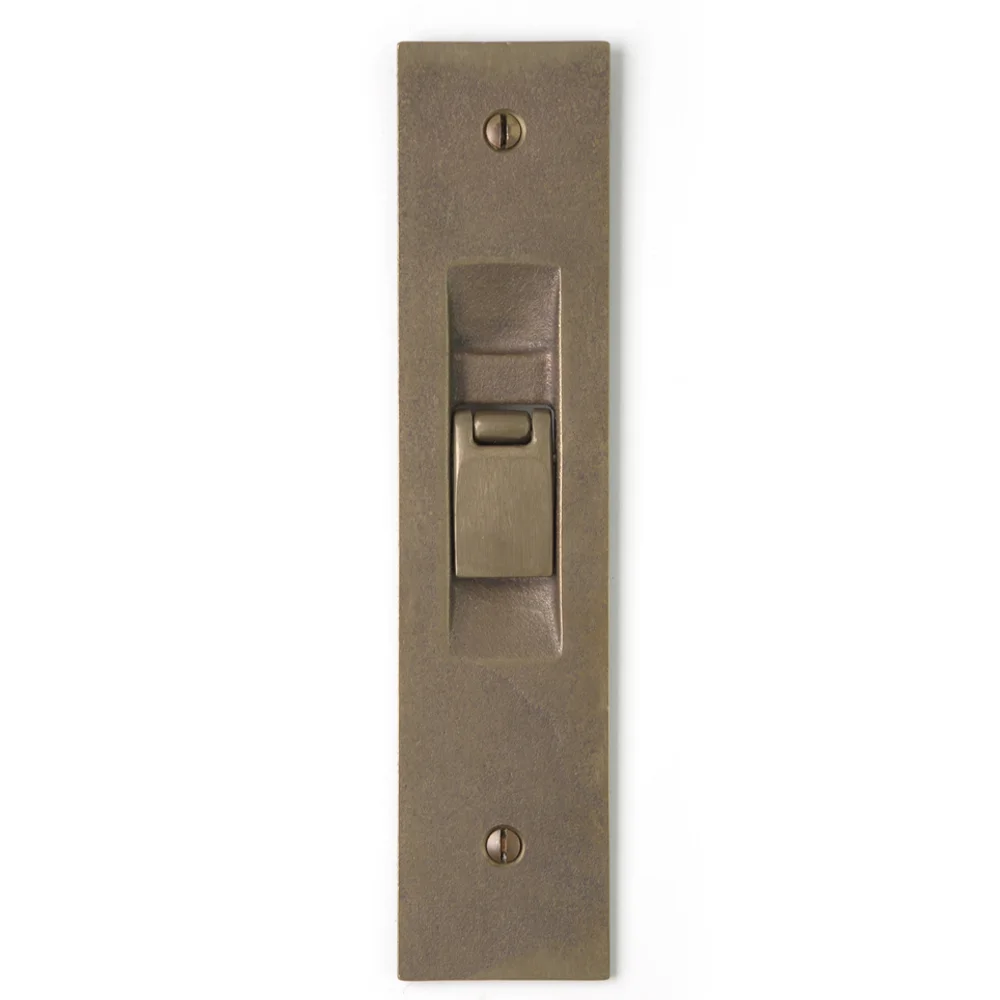

FLIP BOLT

Flush mounted. Bolt offsets are available at 7.5, 12.5, 17.5 mm. Extension rods are available, these come with a 20mm bolt offset. The flip action provides a good grip. Offset measurements are taken from the door edge to the centre of the bolt. The Bolt is 5mm thick or 13mm round.

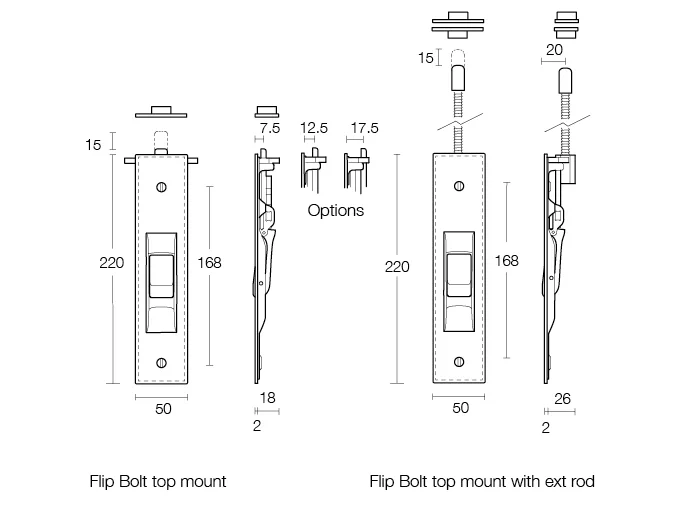

 Dimensional Drawing Flip Bolt
 bronze bolts made in new zealand

SLIDE BOLT

Flush mounted. Can be installed on the face or edge of the door. Non-extended bolts can have an offsets of 10.5, 15.5 or 20mm. Extension rods are available with a 20mm bolt offset. Offset options are from door edge to centre of the bolt. Bolt is 5mm thick or 13mm round.

 Dimensional Drawing Slide Bolt


SLIDERS


On the behalf of Al-Fayad Carpentry & Decoration, I want to thank Blacksand Bronze and you for your lovely items and for its quality. Hope we will have further jobs for you soon.
— Fares N Fayad - Al Fayad
 Bronze sliding door handle made in new zealand

SLIDER 270

Suitable for aluminium and timber joinery, features a deep groove, overall thickness is 24mm including a 6mm flange ( can be milled lower if required )

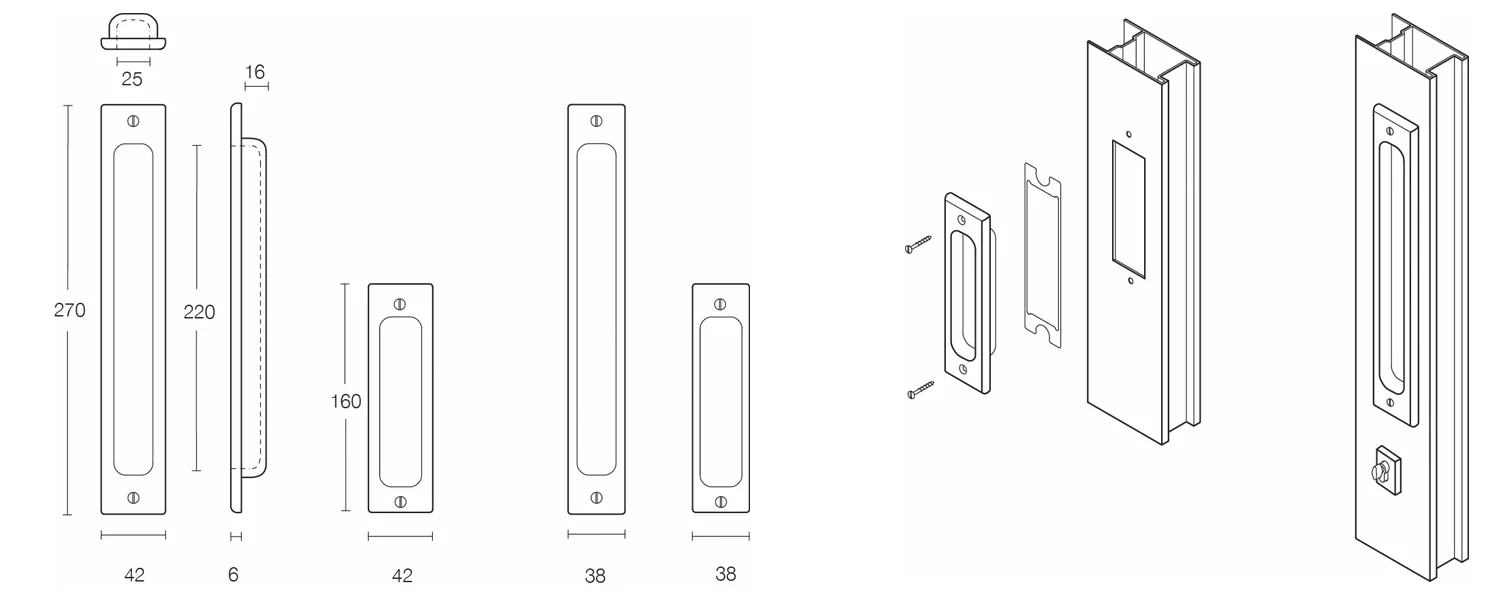

technical drawing slider.jpg

 bronze sliding door handle made in new zealand

EDGE PULL FINGER

Edge pull finger is designed to be used in the edge of pocket doors.

Pocket slider pull.jpg

 bronze sliding door handle made in new zealand

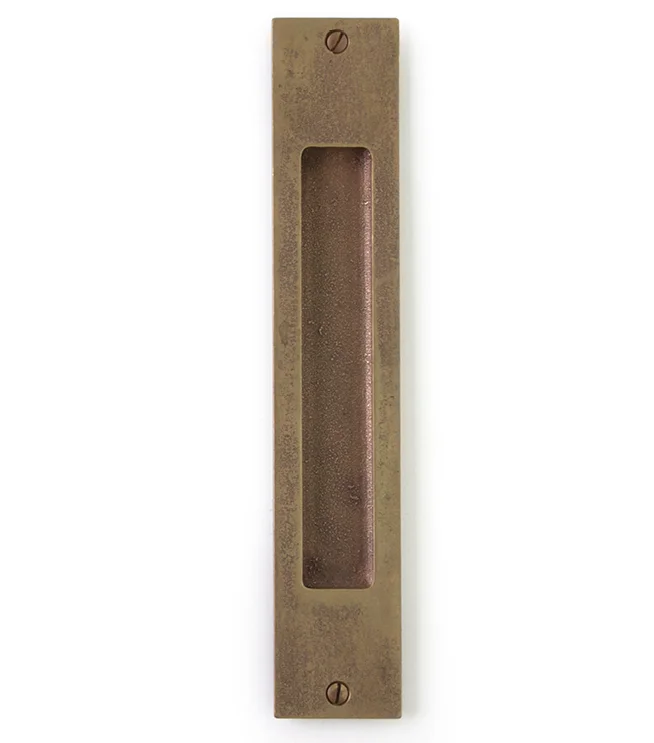

FLUSH PULL

Suitable for timber joinery with deep grip. Overall thickness 16mm including a 2 mm flange.

Flush Pull Dim.jpg
