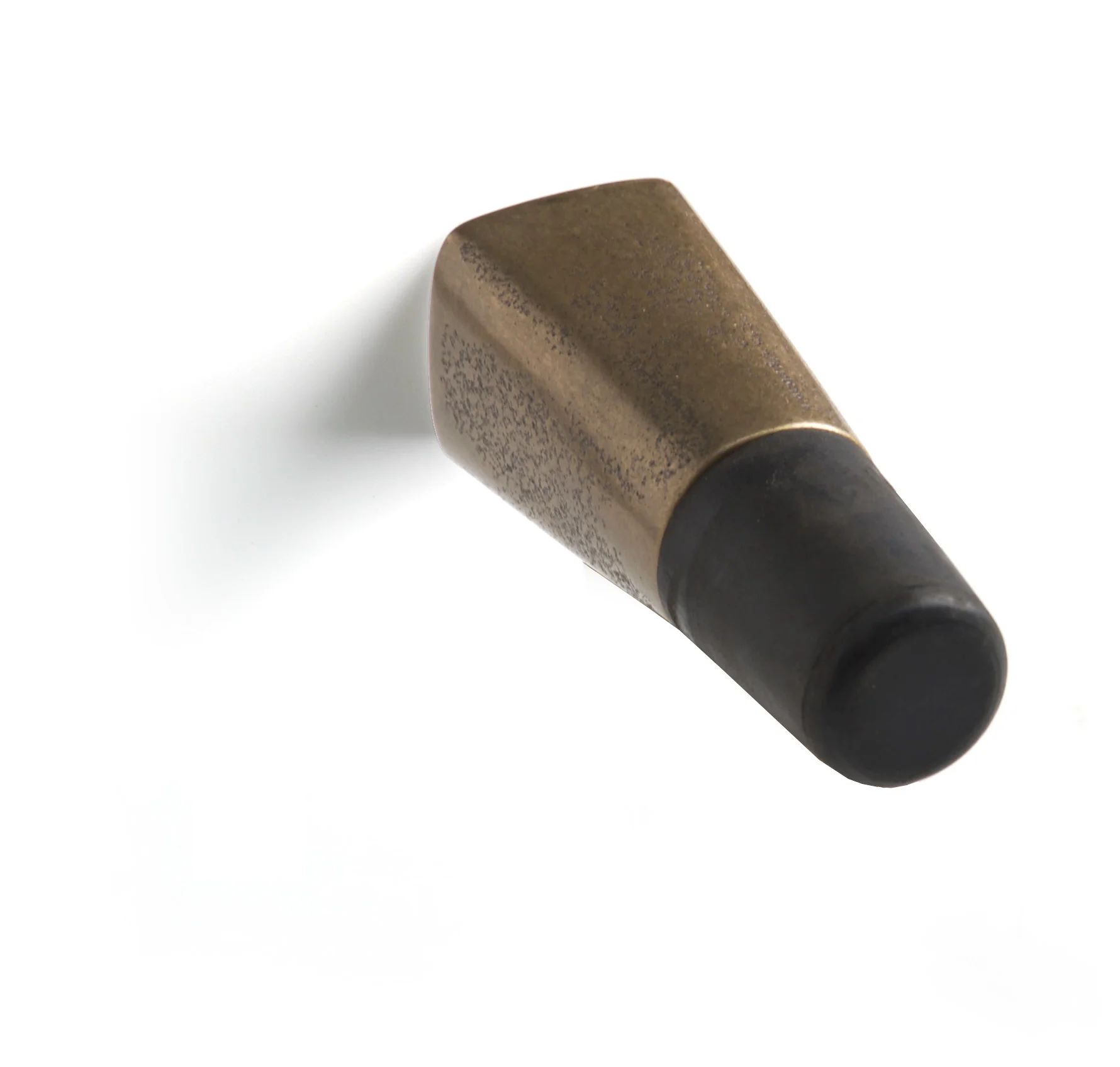

bronze door stop

WALL MOUNTED DOOR STOP

Door Stops can either be wall or floor mounted. They are designed for simple installation.

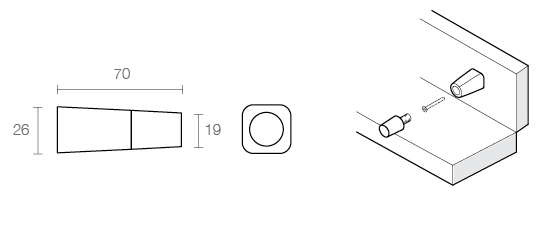

 Dimensional Drawing Wall Mounted Door Knob
 bronze door stop

FLOOR MOUNTED DOOR STOP

 Dimensional Drawing Floor Mounted Door Stop
 bronze window catch made in new zealand

WINDOW CATCHES

Our window catch may be used when the jam and sill are flush, or when they are perpendicular. It is compatible with weather seals and aluminium joinery. Different strikes are available. Catches can be mounted vertically or horizontally.

 Dimensional Drawing Window Catch


ESCUTCHEONS AND TURNS - 9mm

Escutcheons sit over a cylinder turn and are secured by a grub screw. Turns can be supplied with a 8mm or 5mm square spindle or a flat bar, depending on the lock type.

 bronze escutcheons and turns


PUSH PLATES

 bronze push plates

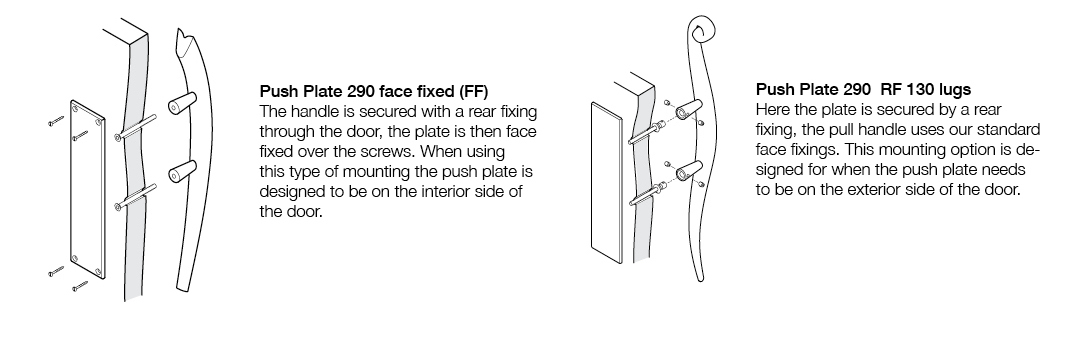

Push plates come in two sizes, they can be face fixed for an interior mounting, or fixed from the rear with a through fixing when required to be on exterior side of the door. Rear fixed plates come with lugs to suit the various fixing positions of our handles.



OFFSET PLATES

 bronze offset plates

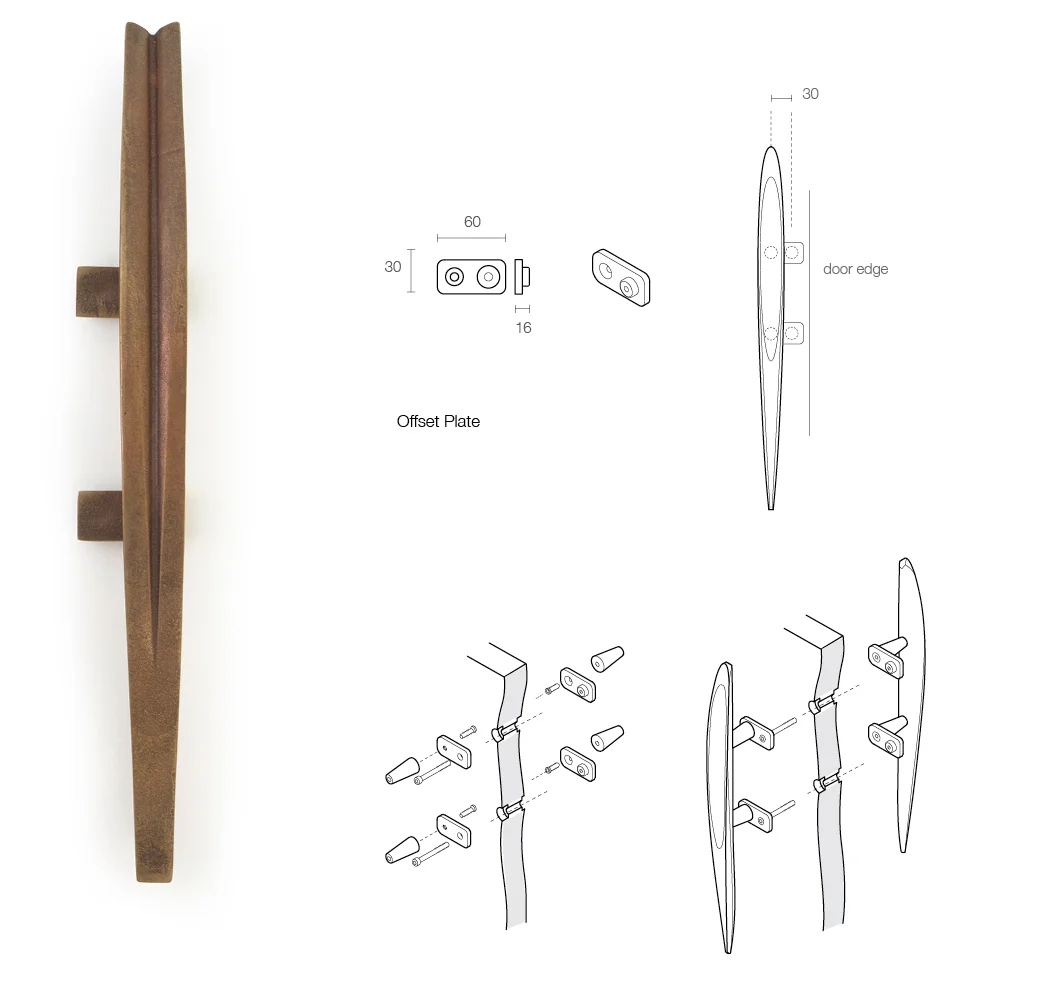

Offset plates increases the back set of our pull handles by 30mm. The handle posts are attached to the offset plates, the plates then use our standard back to back fixing method.
